Product Details:
|
| Product: | Blood Bag Centrifuge | Model: | DD5M |
|---|---|---|---|
| Max Speed: | 5000rpm | Max RCF: | 4620×g |
| Max Capacity: | 6×500ml | Speed Accuracy: | ±50rpm |
| Highlight: | 6×500ml centrifuge used in pharmaceutical industry,LCD Display pharmaceutical centrifuge,6×500ml pharmaceutical centrifuge |
||

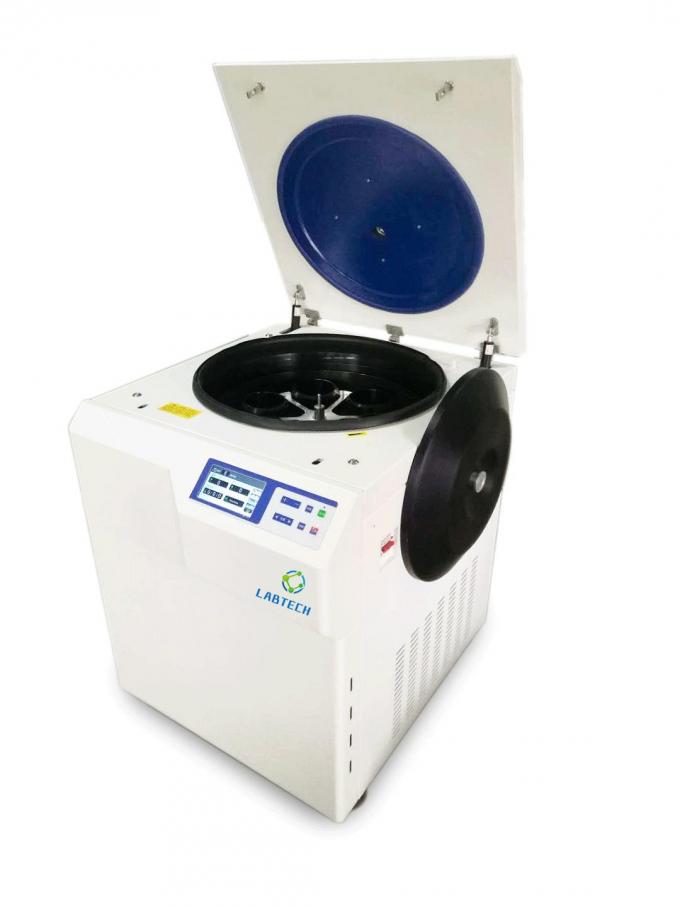

Normal temperature low speed pharmaceutical industry centrifuge
Model: DD5M
Product Description:
This Blood Bag Centrifuge is designed to separate blood and blood components, such as platelets, plasma, red blood cells and cryoprecipitates, from the blood. It is the ideal choice for blood bank and hospital. It is widely used in pharmaceutical industry, research centers, vaccine manufacturing industry and universities.
The design of this Blood Bag Centrifuge is based on international safety standards to ensure maximum safety. Diagnostic and fault information is clearly visible. Beside, the cover lock system and the steel armoured rotor chamber further ensure the safe operation. The operation panel clear displays all functional areas, easy to operate parameters. Visual diagnostic indicators and acoustic signals complement the information provided by a microcomputer. This makes the Blood Bag Centrifuge easy to use from the beginning.
Features:
1. Microprocessor control, operated by touch screen, operation data can be saved automatically, easy to use.
2. Brushless inverter motor, large torque, high-speed bearings, stable operation and maintenance-free.
3. Freon-free compressor, low noise, slight vibration, environmental protection.
4. Steel body, stainless steel centrifugal chamber, imported key components, durable and easy to clean.
5. With over speed, over temperature, unbalance, door lock and other protection functions to ensure personal safety.
6. Widely used in the fields of radical immunity, biochemistry, pharmaceutical research and production, especially the separation and purification of blood products.
Technical data
| Model |
DD5M |
|
Max.speed |
5000rpm |
|
Max.rcf |
4620×g |
|
Max.capacity |
6×500ml |
|
Speed accuracy |
±50rpm |
|
Timer range |
0~99min |
|
Motor |
Converter motor |
|
Noise |
<65db |
|
Display |
LED / LCD |
|
Speed increments [rpm] |
50 |
|
Power supply |
AC220V, 50/60Hz, 15A |
|
Weight |
150kg |
|
Dimension |
630×730×1060mm(L×W×H) |

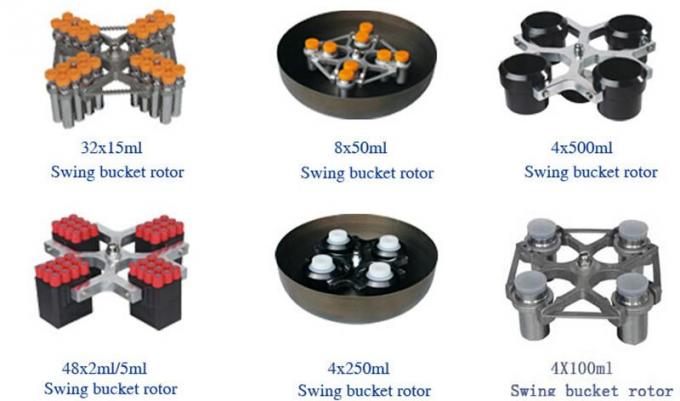

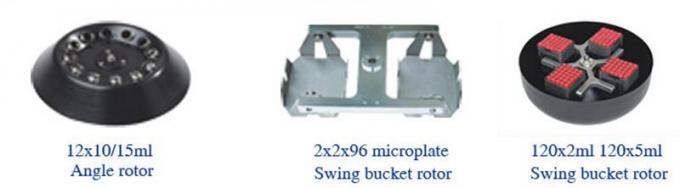

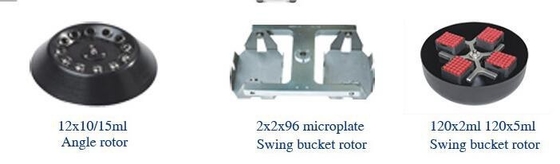

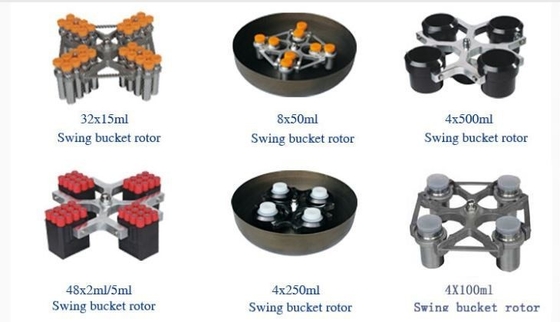

Rotors for option
|
|
Description |
Max.Speed |
Max.rcf |
Material |
Adapter |
|
|
Description |
||||||
|
Angle rotor |
12×10ml |
5000rpm |
3528×g |
Aluminium |
|
|
|
12×15ml |
5000rpm |
3528×g |
|
|||
|
Swing bucket rotor |
48×5ml |
4000rpm |
2980×g |
|
||
|
80×5ml |
4000rpm |
3620×g |
|
|||
|
120×5ml |
4000rpm |
3585×g |
|
|||
|
148x5ml |
4000rpm |
3710xg |
|
|||
|
48×2ml |
4000rpm |
2980×g |
|
|||
|
80×2ml |
4000rpm |
3620×g |
|
|||
|
120×2ml |
4000rpm |
3585×g |
|
|||
|
148x2ml |
4000rpm |
3710xg |
|
|||
|
32×15ml |
4000rpm |
3000×g |
Stainless steel |
|
||
|
8×50ml |
4000rpm |
3040×g |
1.5ml/2.2ml×2×8 |
|||
|
10ml×1×8 |
||||||
|
20ml×1×8 |
||||||
|
5ml/7ml×1×8 |
||||||
|
16×50ml |
4000rpm |
3520×g |
1.5ml/2.2ml×2×4 |
|||
|
10ml×1×4 |
||||||
|
20ml×1×4 |
||||||
|
5ml/7ml×1×4 |
||||||
|
4×100ml |
5000rpm |
4620×g |
1.5ml/2.2ml×3×4 |
|||
|
10ml×1×4 |
||||||
|
50ml×1×4 |
||||||
|
5ml/7ml×3×4 |
||||||
|
4×250ml |
4000rpm |
2990×g |
Aluminium |
1.5ml/2.2ml×10×4 |
||
|
10ml×5×4 |
||||||
|
50ml×2×4 |
||||||
|
5ml/7ml×9×4 |
||||||
|
4×500ml |
4000rpm |
3520×g |
1.5ml/2.2ml×17×4 |
|||
|
10ml×8×4 |
||||||
|
6×500ml |
4000rpm |
3710×g |
12×1.5/2.2ml×6 |
|||
|
1.5ml/2.2ml×17×6 |
||||||
|
10ml×8×6 |
||||||
|
3×30ml×6 |
||||||
|
2×50ml×6 |
||||||
|
1×250ml×6 |
||||||
|
5×15ml×6 |
||||||
|
5ml/7ml×16×6 |
||||||
|
|
2×2×96microplate |
4000rpm |
2390×g |
Stainless steel |
|
|
