Product Details:
|
| Product Name: | Benchtop Refrigerated Centrifuge | Model: | TGL16MB |
|---|---|---|---|
| Type: | LCD Screen / Plastic And Metal Frame | Max Speed: | 16000rpm |
| Max RCF: | 17800×g | Motor: | Inverter Motor |
| Highlight: | inverter motor Benchtop Refrigerated Centrifuge,LCD screen benchtop centrifuge,LCD screen Benchtop Refrigerated Centrifuge |
||

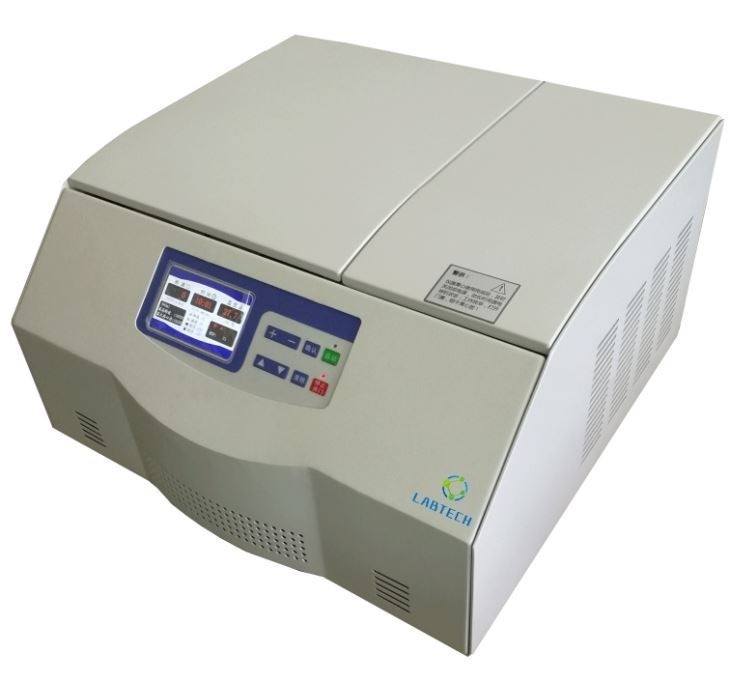

Tabletop High Speed Refrigerated Centrifuge
Model: TGL-16MB / TGL-16M
Description:
The Benchtop Refrigerated Centrifuge provides larger capacity with smaller area. The ability to change the rotor in a few seconds allows for multipurpose applications in cell culture, biological production, blood separation, microbiology, etc. It can be used to separate substances with different density in suspension or emulsion.
This Benchtop Refrigerated Centrifuge can accommodate a variety of rotors to meet your application needs. It is an ideal desktop centrifuge for almost all applications. It is very suitable for use at close range or under storage shelves. This device is considered to be a stable centrifuge for the entire scientific community, which can be used in a variety of applications ranging from the separation of cell lysates to the production of DNA precipitation. Besides, it is also equipped with LCD display for rotating speed, cycle time and internal temperature.
Our Benchtop Refrigerated Centrifuge stands out in terms of performance, reliability, consistency and safety. It is especially popular because of its minimized exterior footprint. The centrifuge has additional cooling effect to prevent sample degradation due to heat generated by rotating action.
Technical data
|
Model |
TGL16MB |
TGL16M |
|
Type |
LCD screen / plastic and metal frame |
Digital display / metal frame |
|
Max.speed |
16000rpm |
16000rpm |
|
Max rcf |
17800×g |
17800×g |
|
Motor |
inverter motor |
brushless motor |
|
Compressor |
imported compressor |
imported compressor |
|
Temp range |
－20℃~＋40℃ |
－20℃~＋40℃ |
|
Time accuracy |
±2℃ |
±2℃ |
|
Time range |
0~99min |
0~99min |
|
Noise |
<55db |
<55db |
|
Display |
LCD |
Digital display |
|
Acceleration/ Deceleration rates |
1-- 10 |
|
|
Power |
Ac220V, 50/60Hz, 20A |
Ac220V, 50/60Hz, 20A |
|
Weight |
70kg |
75kg |
|
Dimension |
620×500×350mm(L×W×H) |
620×470×320mm(L×W×H) |

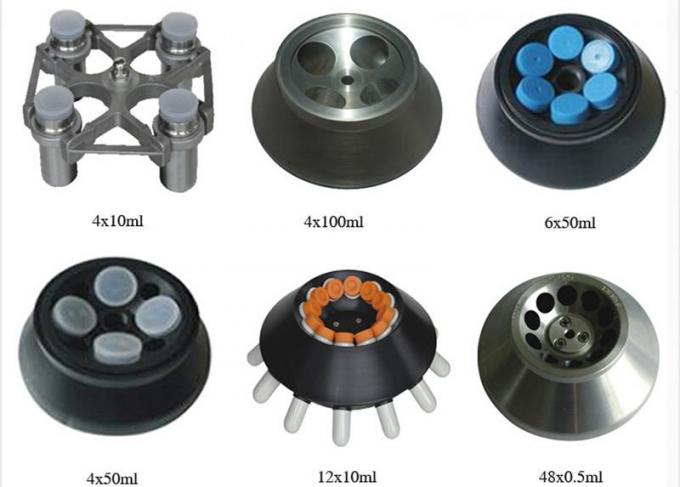

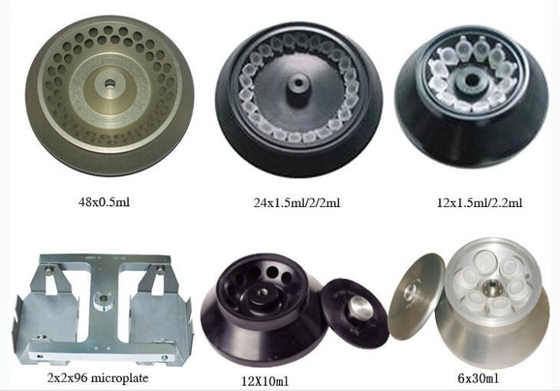

Matched Rotors for option
|
|
Description |
Max.Speed |
Max.rcf |
Material |
Tube Order No. |
Adapter |
|
Description |
||||||
|
Angle rotor |
12×0.5ml |
16000rpm |
17800xg |
|
P0001 |
|
|
48×0.5ml |
13000rpm |
13910xg |
|
P0001 |
|
|
|
12×1.5ml |
16000rpm |
17800×g |
Aluminium alloy |
P0002 |
|
|
|
24×1.5ml |
13000rpm |
15710×g |
P0002 |
|
||
|
12×2.2ml |
16000rpm |
17800×g |
P0003 |
|
||
|
24×2.2ml |
13000rpm |
15710×g |
P0003 |
|
||
|
10×5ml |
14000rpm |
13200×g |
P0004 |
|
||
|
12×7/10ml |
13000rpm |
12740×g |
P0008 |
|
||
|
6x15ml |
13000rpm |
12740xg |
|
|
||
|
4×50ml |
12000rpm |
13900×g |
P0016 |
1.5ml/2.2ml×2×4 |
||
|
10ml×1×4 |
||||||
|
20ml×1×4 |
||||||
|
6×30ml |
12000 rpm |
13900×g |
P0013 |
|
||
|
6×50ml |
12000 rpm |
13280×g |
P0016 |
1.5ml/2.2ml×2×6 |
||
|
10ml×1×6 |
||||||
|
20ml×1×6 |
||||||
|
4×100ml |
10000rpm |
10975×g |
P0020 |
1.5ml/2.2ml×3×4 |
||
|
10ml×1×4 |
||||||
|
50ml×1×4 |
||||||
|
Swing bucket rotor |
4×10ml |
6000rpm |
4495×g |
P0009 |
|
|
|
2×2×48microplate |
4000rpm |
1505×g |
Stainless steel |
|
|
