25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml

Certification
China Changsha Labtech Group Limited. certification
China Changsha Labtech Group Limited. certification
I'm Online Chat Now

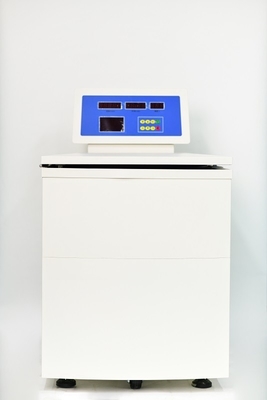

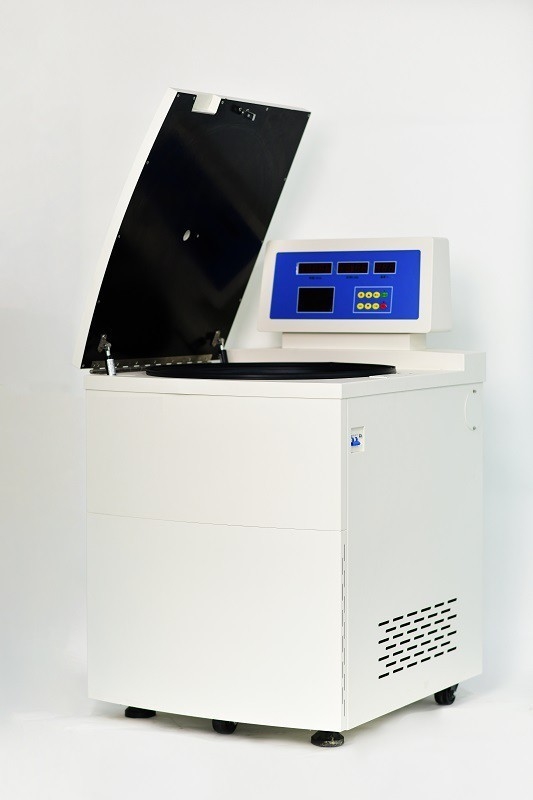

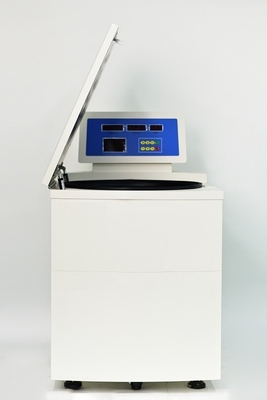

25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml

25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml
25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml 25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml 25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml 25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml 25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml

Large Image :  25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml

Product Details:
Place of Origin: China
Brand Name: Labtech
Certification: ISO, CE
Model Number: FR25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 5-8 Work Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100 units/month

25000rpm High Speed Refrigerated Centrifuge Machine 4x1000ml

Description
Maximum Speed: 25000 Rpm Maximum RCF: 64800xg
Maximum Capacity: 4x1000ml Noise Level: ≦60dB(A)
Highlight:

25000rpm High Speed Refrigerated Centrifuge

,

4x1000ml Refrigerated Centrifuge Machine

,

25000rpm Refrigerated Centrifuge Machine

25000rpm High Speed Refrigerated Centrifuge
Product Details

25000 rpm

Maximum Speed

64800xg

Maximum RCF

4x1000ml

Maximum Capacity

60dB(A)

Noise Level(dBA)

Temperature up to -20℃ Celslus

Accuracy of ±1℃

RTC (Real-Time Control) Function

Self-Locking Rotor System

Automatic RFID rotor identification

Castor wheels for ease of mobility





Technical Specifications:

Max. Speed

25000rpm

Motor

AC frequency conversion motor, direct drive

Speed accuracy

±10rpm

Screen

Touch LED color+digital screen

Max.Capacity

4x1000ml

Control

advanced CPU control system

Max. RCF

64800xg

Timer range

1~99min59s

Daily use program

30

Temp accuracy

±1℃

Temp.range (at RT 25℃)

-20℃~40℃

Acceleration/Deceleration Rate

10

Noise

<60dB(A)

Power supply

AC220v 50Hz 30A,5kw

Net weight

220kg

Dimension

860×730×1200mm(L×W×H)

Gross weight

250kg

Packing Size

920×790×1700mm(L×W×H)



Matched Rotors

No.

Rotor

Capacity

Max.speed

Max. RCF

Note

NO.1product-105-63



Fixed Angle Rotor

24×1.5ml

25000r/min

64800xg

PP/PC tube

NO.2

product-167-113

Fixed Angle Rotor

16×10ml

23000r/min

56880xg

PP/PC tube

NO.3

product-174-122

Fixed Angle Rotor

12×15ml

18000r/min

36220xg

PP/PC tube

NO.4

product-154-107

Fixed Angle Rotor

8×50ml

21000r/min

52360xg

PP/PC tube

NO.5

product-167-116

Fixed Angle Rotor

6×100ml

18000r/min

38460xg

PP/PC tube

NO.6

product-192-114

Fixed Angle Rotor

6×250ml

12000r/min

30200xg

PP/PC tube

NO.7

product-155-92

Fixed Angle Rotor

6×500ml

10000r/min

17800xg

PP/PC tube

NO.8

product-225-146

Fixed Angle Rotor

4×1000ml

8000r/min

12000xg

PP/PC tube



Description

The floor-standing refrigerated centrifuge FR25 is designed for handling substantial sample volumes with its 4x1000ml fixed rotor and swing-out rotor capabilities. Widely employed in blood stations, pharmaceutical factories, biochemistry labs, and biological product research, this centrifuge excels in tasks such as blood separation, protein precipitation, and cell collection. It meets stringent quality standards, holding CE security certification as well as ISO9001 and 13485 quality certifications, making it a reliable choice for various scientific applications.



Features
  • CFC-free cooling system with high-efficiency environmental protection refrigeration and dual circuit control for precise temperature control.
  • Programmable and storable, storing up to 30 programs accessible with one keystroke save. Stored parameters remain in memory even after centrifugation is switched off.
  • 10-speed acceleration and deceleration curves to effectively avoid secondary sedimentation, ensuring better centrifugation.
  • Automatic lid-locking and holding during rotor run.

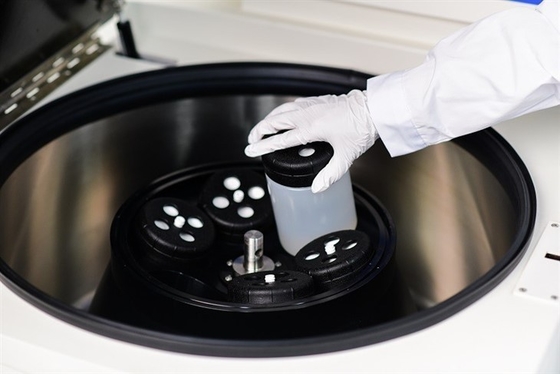

  • Easily exchangeable rotors with a special connector for convenient loading and unloading.
  • Self-diagnostic system with high-strength chamber coating and protective features.
  • "Mute" patented technology ensures operational noise is less than 58 decibels even at the highest speeds.
  • Automatic RPM/RCF conversion and rotor identification system to prevent over-speeding.



  • Autoclave-able steel body and stainless steel chamber with a super hard aluminum alloy rotor for exceptional sealing and sterilization resistance.
  • Microprocessor control and frequency conversion motor drive.
  • Observations window on the lid for speed calibration and noise measurement.

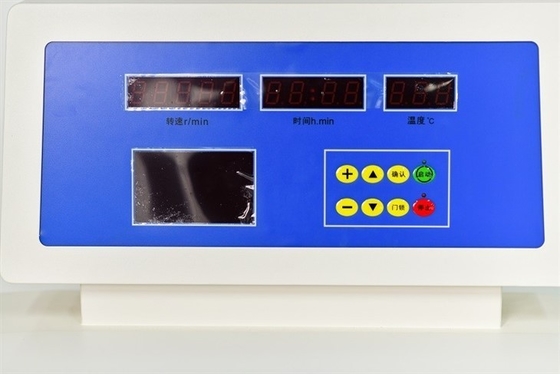

  • Touch color large screen displaying Speed, Timer, RCF, Rotors, Program(Memory), Acceleration & Deceleration information, and Error codes.
  • Wind cover shield to prevent air currents from affecting the specimens being processed.
  • Rotor made of a super hard aluminum alloy with excellent sealing and unlimited high-temperature and high-pressure sterilization resistance.
  • Double-layer silicone seal rings on the door cover and body for enhanced sealing.



  • Produced in compliance with international safety regulations (e.g., IEC 61010).
  • Safety Electrical lid interlock prevents the door from opening when the rotor is running and the machine won’t run when the lid is open, displaying error codes if necessary.
  • Automatic rotor locking function eliminates the need to manually tighten the rotor head. The automatic rotor identification system prevents the wrong rotor from running, ensuring personnel safety and centrifuge stability.
  • Emergency lid-lock release activates during power failure, preventing accidents in unexpected power interruptions.
  • Gas hinge for lid drop protection.
  • Equipped with door cover protection, over-speed, over-current, and advanced electronic unbalance detection system, ensuring real-time monitoring of the centrifuge process and ensuring safe operation.
