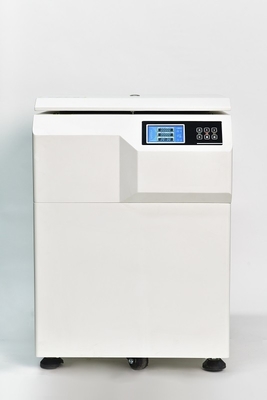

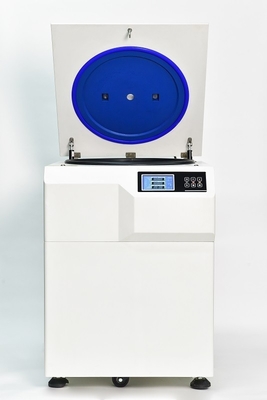

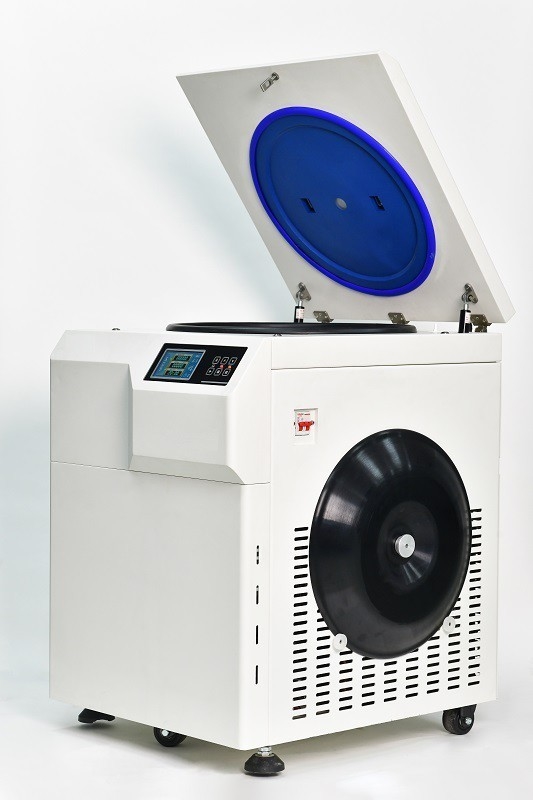

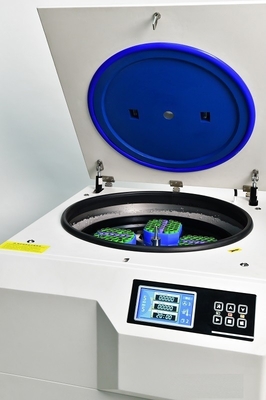

4x750ml Floor Standing Refrigerated Centrifuge Machine 0-22000rpm Adjustable

Large Image : 4x750ml Floor Standing Refrigerated Centrifuge Machine 0-22000rpm Adjustable

Product Details:

Place of Origin:	China
Brand Name:	Labtech
Certification:	ISO, CE
Model Number:	FR22-M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden Box
Delivery Time:	5-8 Work Days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	100 units/month

Contact Now

4x750ml Floor Standing Refrigerated Centrifuge Machine 0-22000rpm Adjustable

Description

Maximum Speed:

21000 Rpm

Maximum RCF:

31554xg

Maximum Capacity:

4x750ml

Noise Level(dBA):

≦58dB(A)

Highlight:

4x750ml floor standing refrigerated centrifuge

22000rpm floor standing refrigerated centrifuge

4x750ml Refrigerated Centrifuge machine

Floor High Speed Refrigerated Centrifuge With Multiple Ro...

Product Details

21000 rpm	Maximum Speed
31554xg	Maximum RCF
4x750ml	Maximum Capacity
≦58dB(A)	Noise Level(dBA)
Temperature up to -20℃ Celslus Accuracy of ±1℃ RTC (Real-Time Control) Function Self-Locking Rotor System Automatic RFID rotor identification Castor wheels for ease of mobility

Technical Specifications:

Speed range(rpm)	0-22000rpm adjustable	Time range	1-99minutes 59s adjustable
Max Capacity(ml)	4*750ml	Speed accuracy	±10r/min
RCF range (xg)	0-34630xg adjustable	ACC/DEC	1-10 rates
Temperature control range	-20℃～+40℃	Temperature control accuracy	±1℃
Noise(dBA)	≦58dB(A)	Net weight(without rotor)	190KGS
Power supply	AC220V,50HZ,16A, 2400W	Dimension(mm)	690x590x835mm(LxWxH)

Matched Rotors

No.	Rotor	Max. capacity	Max.speed	Max.RCF	Note
NO.1	Angle rotor	10×5ml	21000r/min	31554xg	PP/PC tube
NO.1	Adapter	10×1.5ml	21000r/min	31554xg	PP/PC tube
NO.2	Angle rotor	24x1.5/2.2ml	18000r/min	29000xg	PP/PC tube
	Adapter	24×0.5ml			PP/PC tube
	Adapter	24×0.2ml			PP/PC tube
NO.3	Angle rotor	12×10ml	17000r/min	23263xg	PP/PC tube
NO.3	Adapter	12×5ml	17000r/min	23263xg	PP/PC tube
NO.4	Adapter	12×1.5ml	16000r/min	31196xg	PP/PC tube
	Angle rotor	10×15ml			PP/PC tube
	Adapter	10×5ml			PP/PC tube
	Adapter	10×1.5ml			PP/PC tube
NO.5	Angle rotor	6×50ml	17000r/min	29080xg	PP/PC tube
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×1.5ml			PP/PC tube
NO.6	Angle rotor	8×50ml	15000r/min	26800xg	PP/PC tube
	Adapter	8×15ml			PP/PC tube
	Adapter	8×10ml			PP/PC tube
	Adapter	8×1.5ml			PP/PC tube
NO.7	Angle rotor	6×100ml	15000r/min	27170xg	PP/PC tube
	Adapter	6×50ml			PP/PC tube
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×5ml			PP/PC tube
	Adapter	6×1.5ml			PP/PC tube
NO.8	Angle rotor	4×250ml	13000r/min	24563xg	PP/PC tube
	Adapter	4×100ml			PP/PC tube
	Adapter	4×50ml			PP/PC tube
	Adapter	4×5x15ml
	Adapter	4×5x10ml			PP/PC tube
	Adapter	4×10×1.5ml			PP/PC tube
NO.9	Swing bucket	4×600ml	4500r/min	4224xg	Square cup
	Adapter	4×25x5/2ml			PP/PC tube
	Adapter	4×12×15/10ml			PP/PC tube
	Adapter	4×5×50ml			PP/PC tube
	Adapter	4×4×100ml			PP/PC tube
NO.10	Swing rotor	4×500ml	4500r/min	4224xg	Round cup
	Adapter	4×17×5/2ml			PP/PC tube
	Adapter	4×8×15/10ml			PP/PC tube
	Adapter	4×3×50ml			PP/PC tube
	Adapter	4×100ml			PP/PC tube
NO.11	Swing rotor	4×750ml	4500r/min	4358xg	Round cup
	Adapter	4×26×5/2ml			PP/PC tube
	Adapter	4×13×15/10ml			PP/PC tube
	Adapter	4×5×50ml			PP/PC tube
	Adapter	4×3x100ml			PP/PC tube
NO.12	Microplate rotor	4×2×96 well	4200r/min	3155xg	Square cup
NO.12	Adapter	4×32×1.5ml	4200r/min	3155xg	PP/PC tube

Description

The FR22-M centrifuge boasts remarkable versatility, accommodating a maximum of 4x250ml fixed angle rotors and 4x750ml swing-out rotors. Its selection includes various fixed-angle and swing-out rotors, along with an array of buckets and adapters, including bio-safety configurations. This centrifuge supports tube capacities from 0.2 ml to 250 ml in fixed-angle rotors and 2 ml to 750 ml in swing-out rotors. It even handles Microtiter and deepwell plates. This wide compatibility range makes it highly versatile, ideal for diverse tasks including high-throughput applications.

Feature

Design:

Autoclave-able metal housing and stainless steel chamber for durability.
Observations window on the lid for speed calibration and noise measurement.
Microprocessor control with a 7-inch touch screen displaying Speed, Timer, RCF, Rotors, Program, Acceleration & Deceleration, and Error Code information.
Double layers sealing ring ensures excellent sealing.

User-Friendly Features:

CFC-free refrigeration system with precise temperature control down to -20°C.
Programmable with storage for up to 1000 programs, accessible with one keystroke.
USB interface for traceability of centrifugal data.
Password lock for operational security.
10 acceleration rates and 10 braking ramps prevent secondary sedimentation.
Automatic lid-locking and holding during rotor run.
Easily exchangeable rotors with a special connector for convenient loading and unloading.
Automatic troubleshooting with error code display and alarms.
"Mute" patent technology reduces noise levels to below 58 decibels at the highest speed.
Automatic rpm/rcf conversion for ease of use.
Rotor identification system prevents over-speeding.
Safety Measures:
Complies with international safety regulations (e.g., IEC 61010).
Safety Electrical lid interlock prevents the lid from opening when the rotor is running.
Emergency lid-lock release in case of power failure.
Gas hinge for lid drop protection.
Safety features prevent over-speeding, overheating (motor, chamber), imbalance, ensuring user and machine safety.
