Product Details:
|
| Product: | High Speed Refrigerated Centrifuge | Speed: | Above 20,000 Rpm |
|---|---|---|---|
| Rotor Material: | Titanium Alloy And Aluminum Alloy | Tube Material: | Polyethylene Hard Plastic |
| Highlight: | 20000rpm high speed cooling centrifuge,high speed cooling centrifuge 20000rpm,cooling centrifuge AC220V 60Hz |
||

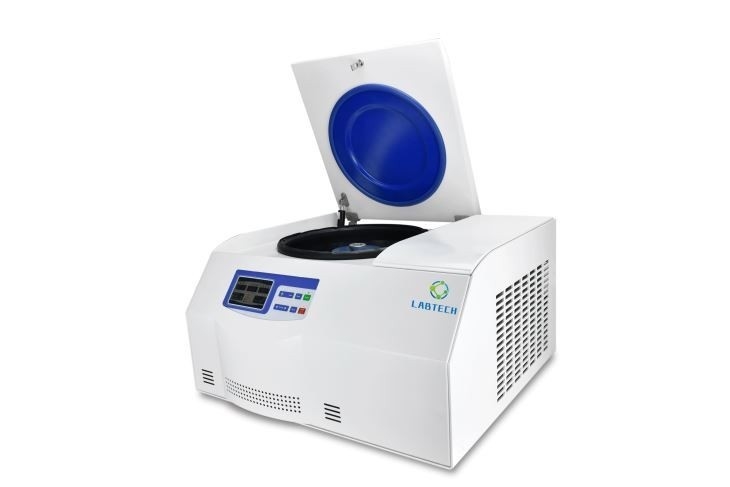

High Speed Cooling/Refrigerated Centrifuge
Model: TGL-20MB / TGL-20M
Product Feature:
This high speed refrigerated centrifuge features special rotor connector which makes it easy to load and unload.
There is an openable door in case of emergency solution, which is very useful for unexpected power interruption.
It is equipped with an advanced electronic imbalance detection system and real time process monitoring for extra safety.
It is consistent with CE security certification, ISO9001 and 13485 quality certification.
Product Description:
This high speed refrigerated centrifuge can reach speeds above 20,000 rpm. With the high performance and strong structure, the angle rotors are mostly made of titanium alloy and aluminum alloy. The tube is a polyethylene hard plastic product with a cover. In addition, this centrifuge can be widely used to collect microorganisms, cell debris, cells, large organelles, sulfate precipitates, and immunoprecipitates. The panel is equipped with various control switches and buttons for display and adjustment. This cold coil is placed against the inner wall to reduce the temperature of the centrifuge chamber. Besides, this insulating layer is arranged between the inner wall of the centrifugal chamber and the outer wall.
Technical data
|
Model |
TGL-20MB |
TGL-20M |
|
Max.speed |
20000rpm |
20000rpm |
|
Max.rcf |
27800×g |
27800×g |
|
Speed accuracy |
±20r/min |
±20r/min |
|
Temp.range |
-20℃~+40℃ |
-20℃~+40℃ |
|
Temp accuracy |
±2℃ |
±2℃ |
|
Noise |
<55db |
<55db |
|
Timer range |
0~99min |
0~99min |
|
Display |
LCD |
Digital display |
|
Acceleration/ Deceleration rates |
1-- 10 |
|
|
Power supply |
AC220V, 50/60Hz, 18A |
AC220V, 50/60Hz, 18A |
|
Weight |
65kg |
70kg |
|
Dimension |
620×500×350ml(L×W×H) |
620×500×350ml(L×W×H) |

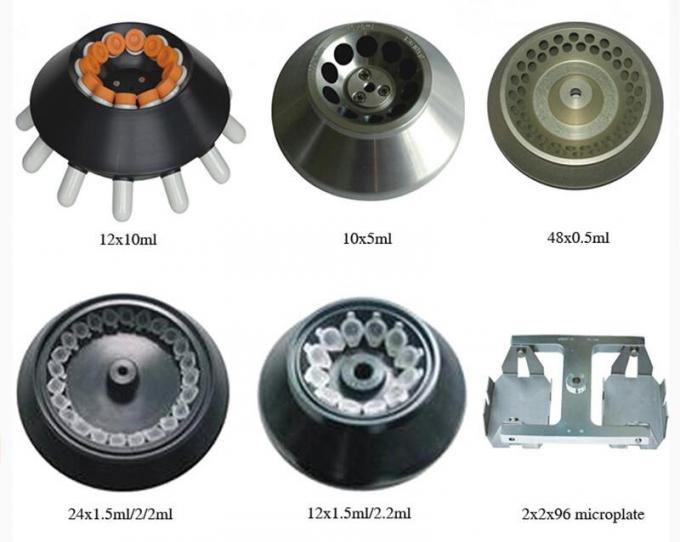

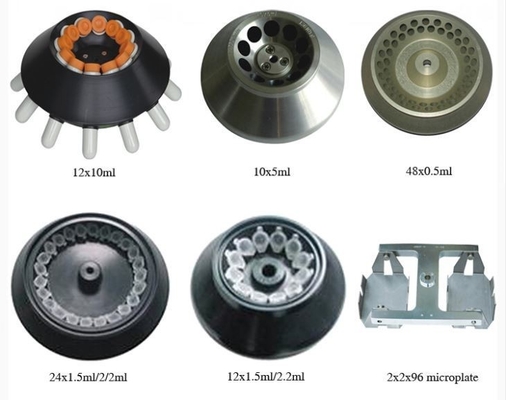

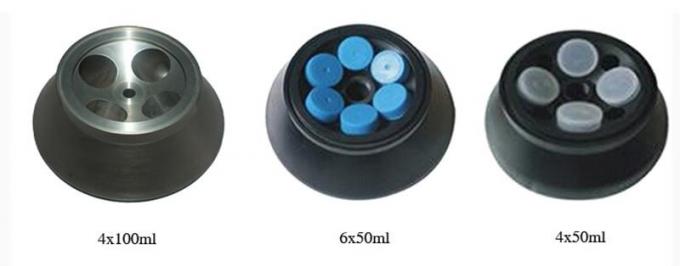

Rotors
|
|
Order No. |
Description |
Max.Speed |
Max.rcf |
Material |
Adapter |
||
|
Order No. |
Description |
Tube order No. |
||||||
|
Angle rotor |
011205/20 |
12×0.5ml |
20000rpm |
20380×g |
Aluminium alloy |
|
|
|
|
014805/16 |
48×0.5ml |
16000rpm |
21900×g |
|
|
|
||
|
0112015/20 |
12×1.5ml |
20000rpm |
27800×g |
|
|
|
||
|
0112022/20 |
12×2.2ml |
20000rpm |
27800×g |
|
|
|
||
|
01105/16 |
10×5ml |
16000rpm |
17780×g |
|
|
|
||
|
011210/15 |
12×10ml |
15000rpm |
19910×g |
|
|
|
||
|
01650/13 |
6×50ml |
13000rpm |
18550×g |
A00005002 |
1.5ml/2.2ml×2×6 |
P0002 P0003 |
||
|
A00005004 |
10ml×1×6 |
P0008 P0010 |
||||||
|
A00005009 |
20ml×1×6 |
P0012 |
||||||
|
0124015/16 |
24×1.5ml |
16000rpm |
23800×g |
|
|
|
||
|
0124022/16 |
24×2.2ml |
16000rpm |
23800×g |
|
|
|
||
|
01450/14 |
4×50ml |
14000rpm |
19100×g |
A00005001 |
1.5ml/2.2ml×2×4 |
P0002 P0003 |
||
|
A00005005 |
10ml×1×4 |
P0008 P0010 |
||||||
|
A00005007 |
20ml×1×4 |
P0012 |
||||||
|
014100/11 |
4×100ml |
11000rpm |
13280×g |
A00010001 |
1.5ml/2.2ml×3×4 |
P0002 P0003 |
||
|
A00010003 |
10ml×1×4 |
P0008 P0010 |
||||||
|
A00010005 |
50ml×1×4 |
P0016 P0018 |
||||||
|
Swing bucket rotor |
022248/04 |
2×2×48microplate |
4000rpm |
1505×g |
Stainless steel |
|
|
|
