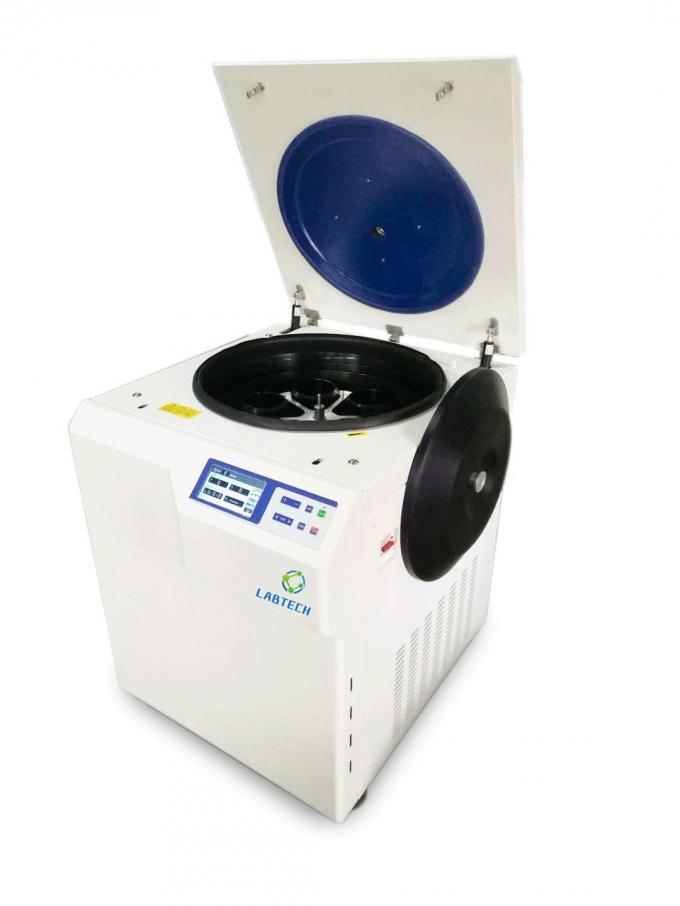

DL5M:Large Capacity Refrigerated Centrifuge Machine /
Low Noise Blood Centrifuge Machine
Product Description
The Blood Centrifuge Machine is an instrument designed for rapid rotation. The rotating centrifugal force rapidly separates the sample into its components. It is ideal for blood or DNA samples and can easily separate blood from plasma in minutes of operation, since the rotors in centrifuges can rotate at incredible speeds. This machine is most common in clinical settings, and also widely used in industrial, medical and academic research.
Our Blood Centrifuge Machine has simple structure, more reliable performance, longer life and quiet operation. The centrifuge is made of solid and safe steel with corrosion resistant epoxy resin coating and stainless steel freezing centrifuge chamber. It adopts brushless frequency conversion motor, no maintenance, no dust pollution. There is automatic electric lock for overspeed, overtemperature protection, unbalanced protection.
This Blood Centrifuge Machine widely used in blood stations, pharmaceutical factories, biochemistry, biological products and other fields. It is an ideal instrument for blood separation, protein precipitation and cell collection.
Specification:
| Speed range(rpm) | 0-5000rpm adjustable |
| Max Capacity(ml) | 6*500ml |
| RCF range (xg) | 0-4650xg adjustable |
| Noise(dBA) | ≦58dB(A) |
| Time range | 1-99minutes adjustable |
| Temperature range(℃) | -20℃~+40℃ adjustable |
| Speed accuracy | ±20r/min |
| Temperature accuracy | ±1℃ |
| Dimension(mm) | 630*730*1060mm |
| Net weight(without rotor) | 180KGS |
| Power supply | AC220-240V,50/60HZ,15A,2.2KW |
Rotors for Option:
| NO.1 Swing rotor | |||
|
Capacity:6x1000ml Max speed:4200rpm Max RCF:5100xg |
Adapter:6x26x0.2ml | Adapter:6x26x0.5ml | Adapter:6x17x1.5/2.2ml |
| Adapter:6x10x5ml | Adapter:6x9x10ml | Adapter:6x9x15ml | |
| Adapter:6x7x20ml | Adapter:6x5x30ml | Adapter:6x3x50ml | |
| Adapter:6x100ml | Adapter:6x250ml | Adapter:6x500ml | |
|
Adapter:6x9x2ml(75mm) (vacuum blood collection tube) |
Adapter:6x9x5ml(100mm) (vacuum blood collection tube) |
All can be custom made | |
| NO.2 Swing rotor | |||
|
Capacity:4x1000ml Max speed:4000rpm Max RCF:39xg |
Adapter:4x40x0.2ml | Adapter:4x40x0.5ml | Adapter:4x26x1.5/2.2ml |
| Adapter:4x16x5ml | Adapter:4x14x10ml | Adapter:4x14x15ml | |
| Adapter:4x9x20ml | Adapter:4x8x30ml | Adapter:4x5x50ml | |
| Adapter:6x3x100ml | Adapter:4x250ml | Adapter:4x300ml | |
| Adapter:4x500ml |
Adapter:4x24x2ml(75mm) (vacuum blood collection tube) |
Adapter:4x24x5ml(100mm) (vacuum blood collection tube) |
|
| NO.3 Swing rotor | |||
|
Capacity:4x500ml Max speed:4000rpm Max RCF:3520xg |
Adapter:4x26x0.2ml | Adapter:4x26x0.5ml | Adapter:4x17x1.5/2.2ml |
| Adapter:4x10x5ml | Adapter:4x9x10ml | Adapter:4x9x15ml | |
| Adapter:4x7x20ml | Adapter:4x5x30ml | Adapter:4x3x50ml | |
| Adapter:4x100ml | Adapter:4x250ml | Adapter:4x300ml | |
|
Adapter:4x9x2ml(75mm) (vacuum blood collection tube) |
Adapter:4x9x5ml(100mm) (vacuum blood collection tube) |
All can be custom made | |
| NO.4 Swing rotor | |||
|
Max speed:4000rpm Max RCF:3765xg |
Adapter:4x26x0.2ml | Adapter:4x26x0.5ml | Adapter:4x17x1.5/2.2ml |
| Adapter:4x10x5ml | Adapter:4x4x10ml | Adapter:4x4x15ml | |
| Adapter:4x20ml | Adapter:4x30ml | Adapter:4x50ml | |
| Adapter:4x100ml |
Adapter:4x9x2ml(75mm) (vacuum blood collection tube) |
Adapter:4x6x5ml(100mm) (vacuum blood collection tube) |
|
| NO.5 Swing rotor | |||
|
Capacity:4x250ml Max speed:4000rpm Max RCF:2990xg |
Adapter:4x13x0.2ml | Adapter:4x13x0.5ml | Adapter:4x10x1.5/2.2ml |
| Adapter:4x6x5ml | Adapter:4x5x10ml | Adapter:4x5x15ml | |
| Adapter:4x4x20ml | Adapter:4x3x30ml | Adapter:4x50ml | |
| Adapter:4x100ml |
Adapter:4x9x2ml(75mm) (vacuum blood collection tube) |
Adapter:4x9x5ml(100mm) (vacuum blood collection tube) |
|
| NO.6 Swing rotor | NO.7 Swing rotor | ||
|
(vacuum blood collection tube) Max speed:4000rpm Max RCF:2975xg |
Adapter:148x0.2ml |
(vacuum blood collection tube) Max speed:4000rpm Max RCF:3405xg |
Adapter:148x0.2ml |
| Adapter148x0.5ml | Adapter148x0.5ml | ||
| Adapter:148x1.5/2.2ml | Adapter:148x1.5/2.2ml | ||
| NO.8 Swing rotor | |||
|
Capacity:4x100ml Max speed:4000rpm Max RCF:4650xg |
Adapter:4x6x0.2ml | Adapter:4x6x0.5ml | Adapter:4x4x1.5/2.2ml |
| Adapter:4x2x5ml | Adapter:4x10ml | Adapter:4x15ml | |
| Adapter:4x20ml | Adapter:4x30ml | Adapter:4x50ml | |
|
Adapter:4x3x2ml(75mm) (vacuum blood collection tube) |
Adapter:4x3x5ml(100mm) (vacuum blood collection tube) |
All can be custom made | |
| NO.9 Swing rotor | |||
|
Capacity:24x50ml Max speed:4000rpm Max RCF:3405xg |
Adapter:24x3x0.2ml | Adapter:24x3x0.5ml | Adapter:24x2x1.5/2.2ml |
| Adapter:24x5ml | Adapter:24x10ml | Adapter:24x15ml | |
| Adapter:24x20ml | Adapter:24x30ml |
Adapter:24x2ml(75mm) (vacuum blood collection tube) |
|
|
Adapter:24x5ml(100mm) (vacuum blood collection tube) |
All can be custom made | ||
| NO.10 Swing rotor | |||
|
Capacity:8x50ml Max speed:4000rpm Max RCF:3040xg |
Adapter:8x3x0.2ml | Adapter:8x3x0.5ml | Adapter:8x2x1.5/2.2ml |
| Adapter:8x5ml | Adapter:8x10ml | Adapter:8x15ml | |
| Adapter:8x20ml | Adapter:8x30ml |
Adapter:8x2ml(75mm) (vacuum blood collection tube) |
|
|
Adapter:8x5ml(100mm) (vacuum blood collection tube) |
All can be custom made | ||
| NO.11 Swing rotor | |||
|
Max speed:4000rpm Max RCF:3000xg |
Adapter:32x0.2ml | Adapter:32x0.5ml | Adapter:32x1.5/2.2ml |
| Adapter:32x5ml |
Adapter:32x2ml(75mm) (vacuum blood collection tube) |
Adapter:32x5ml(100mm) (vacuum blood collection tube) |
|
| NO.12 Swing rotor | |||
|
Capacity:2x2x96Micro plate Max speed:4000rpm Max RCF:2990xg |
Adapter:2x49x0.2ml | Adapter:2x49x0.5ml | Adapter:2x30x1.5/2.2ml |
| NO.13 Swing rotor | |||
|
Max speed:4000rpm Max RCF:3405xg |
Adapter:4x40x0.2ml | Adapter:4x40x0.5ml | Adapter:4x26x1.5/2.2ml |
| Adapter:4x16x5ml | Adapter:4x14x10ml | Adapter:4x14x15ml | |
| Adapter:4x9x20ml | Adapter:4x8x30ml | Adapter:4x5x50ml | |
| Adapter:6x3x100ml | Adapter:4x250ml | Adapter:4x300ml | |
| Adapter:4x500ml |
Adapter:4x24x2ml(75mm) (vacuum blood collection tube) |
Adapter:4x24x5ml(100mm) (vacuum blood collection tube) |
|
