Product Details:
|
| Product_name: | Laboratory Rotary Evaporator | Components: | Main Condenser,operation Panel,feeding Valve,collecting Bottle,rotating Bottle,base |
|---|---|---|---|
| Advantages: | Good Air Tightness,strong Maneuverability,corrosion Resistance,wear Resistance | ||
| Highlight: | 3L Laboratory Rotary Evaporator,corrosion resistant lab evaporator,rotary evaporators lift 150mm |
||

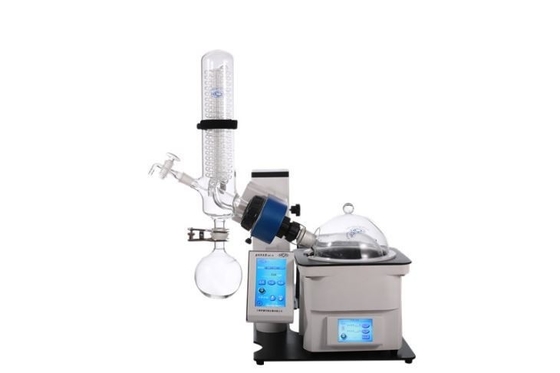

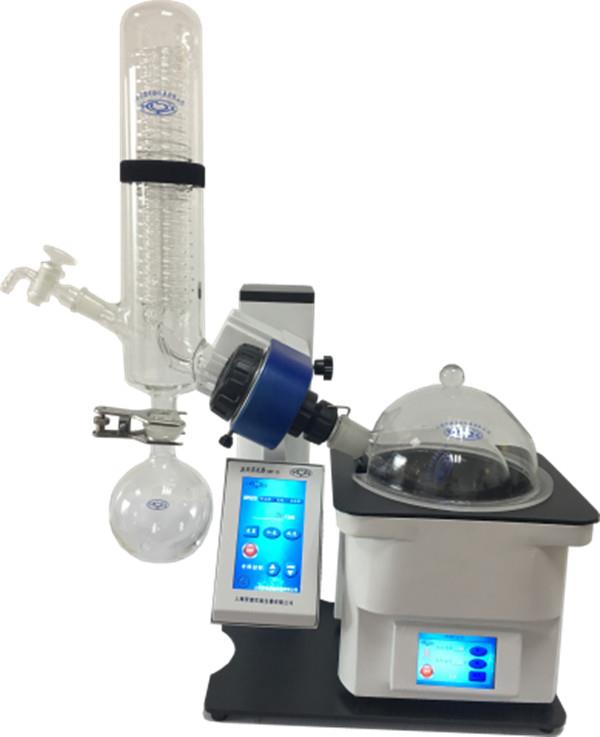

VRT-10 rotary evaporator
Product Description
This kind of Laboratory Rotary Evaporator is mainly composed of main condenser, operation panel, feeding valve, collecting bottle, rotating bottle, base and other hardware. The basic working principle of the Laboratory Rotary Evaporator is reduced pressure distillation, that is, in the case of decompression, when the solvent is distilled, the distillation bottle is continuously rotated. It is mainly used to continuously distill a large amount of volatile solvents under reduced pressure. In particular, the concentration of the extract and the distillation of the receiving liquid in the chromatographic separation, it can separate and purify the reaction product.
In addition, it is sealed with Teflon and rubber to maintain high vacuum, and high efficiency condensers are used to ensure high recovery. The Laboratory Rotary Evaporator also has the advantages of good air tightness, strong maneuverability, corrosion resistance and wear resistance. It is suitable for reflow operations and other operation in laboratory.
Technical parameters
|
Max.capacity:3L lift:150mm Temp.range:RT ~210℃. Temperature control mode: LCD display; PID temperature control Temperature control accuracy: ±1°C Width: 600mm Depth: 330mm Height: 720mm Cooling surface 1800cm2 Voltage: AC220V/AC110V Total power: 1400W Weight: 16kg Heating power: 1300W Minimum speed: 20rpm/minute Host: DC motor Integrated vacuum controller: Yes Motor power: 60W Cooling type: vertical Reversible direction rotation: Yes Security Level: IP 20 Interface: RS 485/USB and infrared interface Frequency: 50/60Hz Speed: up to 310rpm Permitted relative humidity: 80% Allowed maximum ambient temperature 40°C Allowed ambient temperature: 5°C Positive reversal timer: yes |
* Heater water oil universal; with anti-dry automatic power off function * Configure vertical condenser glass assembly * Automatic lifting, with safety stop function * With RS 485/USB and infrared interface * Optimized heating pot capacity enables rapid heating * Rugged design * Heater with ergonomically designed safety handle * Smooth start * can be positive and negative operation * Has timing function * Anti-dry protection * Safety temperature loop * Adjustable end point setting * Condensate design with drop point, anti-backflow device * Special retraction bottle design, easy to withdraw bottles * Large-screen color touch screen controller, multi-parameter intuitive digital display, can be built into 20 kinds of experimental data, quickly start the distillation process. * Set includes: Heater and VRT-10 Vertical Condensation Glass Assembly |
