Product Details:
|
| Model: | AM-DZF-6090LC | Work Room Dimensions: | 45×45×45cm |
|---|---|---|---|
| Outline Dimensions: | 66×61×140 | Packing Dimension: | 79×75×157 |
| Capacity: | 91L | ||
| Highlight: | Vacuum Drying Oven 45×45×45cm,91L Vacuum Drying Oven,91L vacuum lab oven |
||

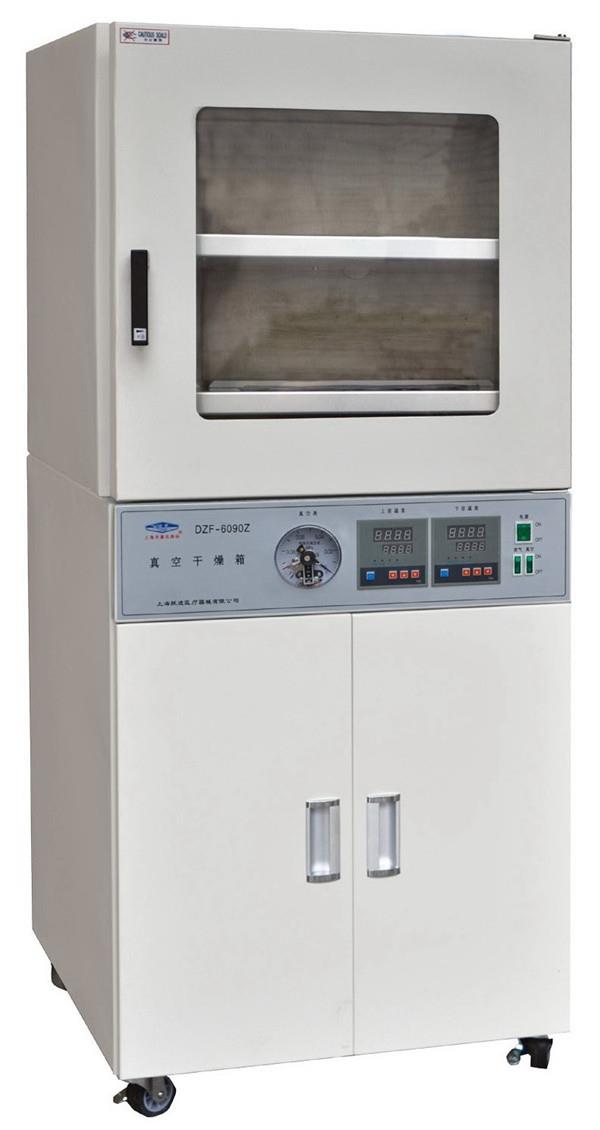

Vacuum Drying Oven (AM-DZF-LC))
Application range:
Vacuum drying oven is applied to dry and heat samples that are heat sensitive, labile and easily-oxidized in the industry, medical institutions and research institutes. During heating, the workroom is in vacuum condition and it can also be filled with inert gas for some complex substance.
Structure features:
Controller:
LED digital tube display, touch button input.
Microprocessor PID control, accurate and stable.
The heaters are installed on the shelves and are controlled separately. So the heating is quick and in uniformity.
Polished stainless steel chamber, which is artistic and durable.
Tempered double-glass door ensures the operation safety.
The tightness of the door closing is adjustable and the door sealing is monolithic silicon ring which ensure the vacuum in the chamber.
Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in).
The Vacuum is controlled by microprocessor controller with digital display.
The working program can be cycled for 99 times.

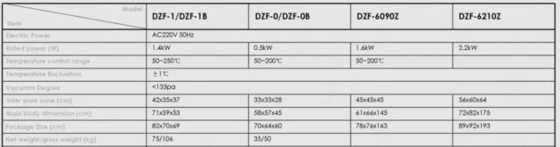

Descriptions:
| Model | AM-DZF-6090LC | AM-DZF-6210LC |
Work room dimensions(cm) | 45×45×45 | 56×60×64 |
Outline dimensions(cm) | 66×61×140 | 76×72×167 |
Packing dimension(cm) | 79×75×157 | 90×85×193 |
Capacity | 91 L | 215 L |
Shelves | 2 | 3 |
Temperature range | 50~200°C | |
Temperature fluctuation | ±1°C | |
Vacuum degree | <133 Pa | |
Rated power (KW) | 1.6±10% | 2.2±10% |
Power supply | 220V 50Hz | |
N.W./G.W. (Kg) | 145/195 | |
