Product Details:
|
Product: | High Speed Refrigerated Centrifuge | Display: | LCD |
---|---|---|---|
Application: | Medical Veterinary Center | Max Speed: | 0-16500rpm Adjustable |
Max Capacity: | 4x100ml | Matched Rotors: | Fixed Angle Rotors |
Attributes: | Stainless Steel Inner Liner,Array | ||
Highlight: | High Speed Refrigerated Centrifuge,Medical Refrigerated Centrifuge,Veterinary Refrigerated Centrifuge |

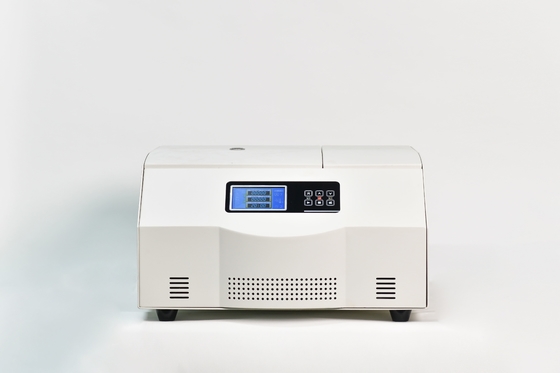

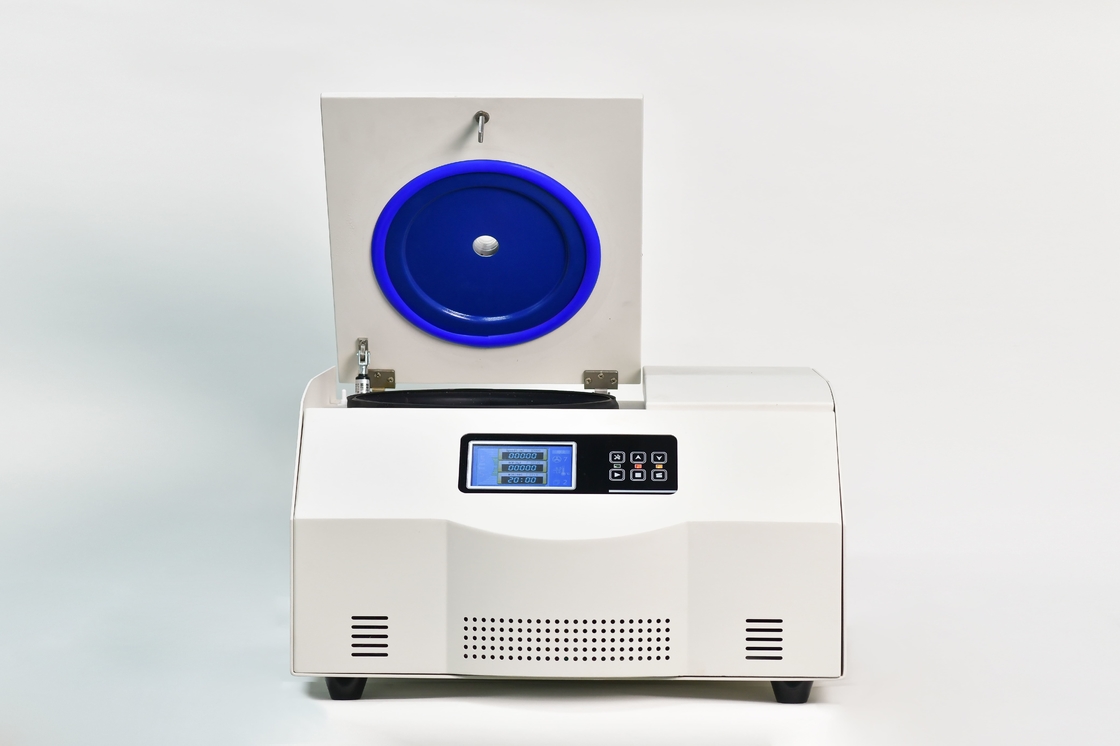

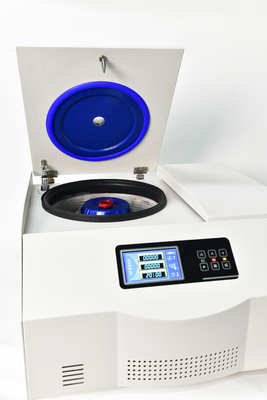

The high-speed refrigerated centrifuge TGL-16M stands out with its impressive maximum speed of 16,500 rpm. Its built-in refrigeration feature ensures precise temperature control during the separation process, crucial for preserving sample integrity. Compatible with a range of fixed-angle rotors and adapters, it caters to high-speed centrifugation needs spanning volumes from 0.2ml to 100ml. Despite its robust capabilities, its compact design makes it a perfect fit for labs with limited space, combining efficiency and convenience seamlessly.
16500 rpm |
23120 xg |
4x100 ml |
Temperature up to -20℃ Celslus |
Maximum Speed | Maximum RCF | Maximum Capacity |
Accuracy of ±1℃ |
Matched Rotors(Customized rotors are available)
No. | Item | Max. capacity | Max.speed | Max.RCF | Note |
NO.1 | Angle rotor | 12×1.5/2.2ml | 16500r/min | 19175xg | PP/PC tube |
Adapter | 12×0.5ml | PP/PC tube | |||
Adapter | 12×0.2ml | PP/PC tube | |||
NO.2 | Angle rotor | 12×5ml | 16500r/min | 19480xg | PP/PC tube |
Adapter | 12×1.5ml | PP/PC tube | |||
NO.3 | Angle rotor | 12×10ml | 12000r/min | 16480xg | PP/PC tube |
Adapter | 12×5ml | PP/PC tube | |||
Adapter | 12×1.5ml | PP/PC tube | |||
NO.4 | Angle rotor | 24×1.5/2.2ml | 14000r/min | 17530xg | PP/PC tube |
Adapter | 24×0.5ml | PP/PC tube | |||
Adapter | 24×0.2ml | PP/PC tube | |||
N0.5 | Angle rotor | 36×0.5/0.2ml | 13000r/min | 15400xg | PP/PC tube |
Adapter | 36×0.5ml | PP/PC tube | |||
Adapter | 36×0.2ml | PP/PC tube | |||
NO.6 | Angle rotor | 12×8×0.2ml | 15000r/min | 23120xg | PCR 8-tube strips |
NO.7 | Angle rotor | 10×15ml | 11000r/min | 14745xg | PP/PC tube |
Adapter | 10×10ml | PP/PC tube | |||
Adapter | 10×5ml | PP/PC tube | |||
NO.8 | Angle rotor | 6×50ml | 11000r/min | 12175xg | PP/PC tube |
Adapter | 6×15ml | PP/PC tube | |||
Adapter | 6×10ml | PP/PC tube | |||
Adapter | 6×1.5ml | PP/PC tube | |||
NO.9 | Angle rotor | 4×100ml | 10000r/min | 10975xg | PP/PC tube |
Adapter | 4×50ml | PP/PC tube | |||
Adapter | 4×15ml | PP/PC tube | |||
Adapter | 4×10ml | PP/PC tube | |||
Adapter | 4×5ml | PP/PC tube | |||
Adapter | 4×1.5ml | PP/PC tube |
· Compact and space-saving centrifuge
· Speed range up to 16500 r/min
· Max.RCF: 23120xg
· Max.capacity: 4x100ml
· Temperature adjustment range:-20℃ to +40℃
1. Direct Drive AC Variable Frequency Motor: Experience high precision, low noise, and an extended lifespan for reliable and efficient operation.
2. High-Efficiency and Environmentally Friendly Refrigeration System: Our centrifuge adopts an advanced cooling system that not only ensures precise temperature control but also eliminates environmental pollution.
3. Silent Technology and "Low-Noise" Patent Certification: With our innovative "Low-Noise" technology, enjoy a quiet laboratory environment as the centrifuge operates at a maximum noise level below 58 decibels.
4. Microcomputer Control and Color LCD Display: Take full control of your experiments with ease. Our centrifuge's user-friendly interface allows programming, storage, and simultaneous display of speed, centrifugal force, and time on a vibrant color screen.
5. 10 adjustable lift speed curves. Customize up to 30 programmable and storable free programs to meet your diverse experimental needs.
6. Double-Layer Sealing Rings on the Door Cover and Body: Designed to meet the demands of long-term use, our centrifuge features excellent sealing performance, ensuring airtight operation.
7. Three-Level Damping System and Versatile Speed Curves: Experience optimal stability and versatility with our centrifuge's three-level damping system.
8. Multiple Safety Features: We prioritize safety. Our centrifuge is equipped with multiple layers of protection, including overspeed detection, overheating prevention, and an electronic safety door lock, ensuring the well-being of both the user and the machine.
