High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available

Certification
China Changsha Labtech Group Limited. certification
China Changsha Labtech Group Limited. certification
I'm Online Chat Now

High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available

High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available
High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available

Large Image :  High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available

Product Details:
Place of Origin: China
Brand Name: Labtech
Certification: CE, ISO, IUV
Model Number: TGL20M

High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available

Description
Applications: Scientific Research,Medical Laboratories Max Speed: 21000 Rpm
Max Capacity: 4x100ml Motor: Brushless AC Motor
Rotor Identification: Automatic Temperature Control Range: -20℃~40℃
Noise Level: ≦58dB(A) Speed Accuracy: ±10r/min
ACC/DEC: 1-10 Rates
Highlight:

10ml Refrigerated Centrifuge

,

100ml Refrigerated Centrifuge

,

50ml Refrigerated Centrifuge



The 21,000rpm High-Speed Refrigerated Centrifuge with Multiple Rotors is designed to offer advanced sample processing capabilities in a range of laboratory applications. Featuring a high-speed motor that reaches up to 21,000 r/min, this versatile centrifuge is equipped with multiple rotor options, making it ideal for separating a wide variety of sample types, from small PCR tubes to larger volume test tubes and blood collection tubes. Its built-in refrigeration system ensures that temperature-sensitive samples remain stable during operation, offering a reliable solution for biochemistry, molecular biology, and clinical research.



High Speed Refrigerated Centrifuge 21000rpm 10ml 50ml 100ml Multi-Rotor Available 0



Tech Specification


Speed range(rpm) 0-21000rpm adjustable Time range 1-99minutes 59s adjustable
Max Capacity(ml) 4*100ml Speed accuracy ±10r/min
RCF range (xg) 0-31061xg adjustable ACC/DEC 1-10 rates
Temperature control range -9℃~+40℃ Temperature control accuracy ±1℃
Noise(dBA) ≦58dB(A) Net weight(without rotor) 80KGS
Power supply AC220V,50HZ,10A, 1000W Dimension(mm) 600x570x380mm(LxWxH)

Features:

  • High-Speed Performance: Achieve speeds up to 21,000 r/min with maximum RCF of 31061 x g, ensuring efficient separation and processing of various sample types.
  • Multiple Rotor Options: Supports a range of rotors, kinds fixed-angle rotors to accommodate different tube sizes, including PCR strips, microcentrifuge tubes, and blood collection tubes.
  • Refrigeration System: Equipped with a built-in cooling system capable of reaching temperatures as low as -20°C, preserving sample integrity even during extended centrifugation processes.
  • Flexible Capacity: Suitable for various tube volumes, with maximum capacities of 4 x 100 ml in fixed-angle rotors and up to 6 x 50 ml in swing-out rotors.
  • Microprocessor Control: Advanced digital controls with an LCD display allow easy monitoring of speed, time, temperature, RCF, and rotor settings, ensuring precise operation.
  • Safety Features: Automatic lid-locking and multi-level safety mechanisms like over-speed, over-temperature protection, and electronic door locks ensure secure and safe operation.
  • Noise Reduction: Operates with minimal noise thanks to advanced engineering, keeping noise levels below 58 dB even at maximum speed.
  • User-Friendly Interface: Intuitive control panel with programmable settings that allow you to store up to 30 user-defined programs, streamlining repetitive tasks.
  • Quick Rotor Exchange: Easy-to-swap rotors and tube holders make it convenient to switch between different applications and tube sizes.
  • Long-Lasting, Low Maintenance: Built with durable components and a high-quality A.C. motor drive to ensure long-lasting performance with minimal maintenance needs.

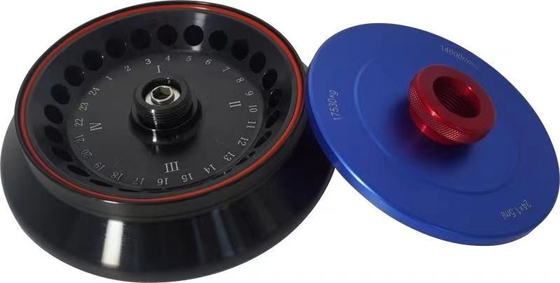

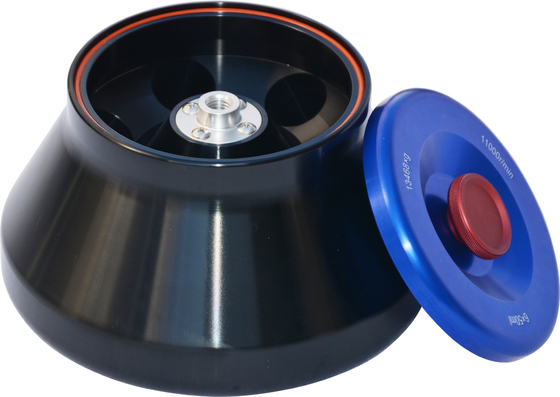

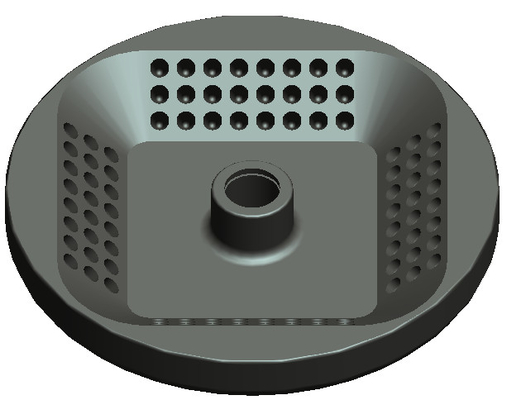

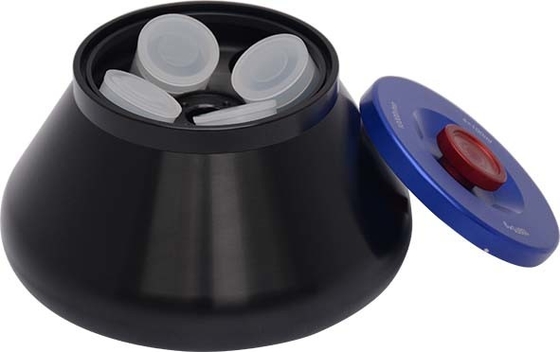

Matched Rotors



No. Item Max. capacity Max.speed Max.RCF Note
NO.1  Angle rotor 12×1.5/2.2ml 21000r/min 31061xg PP/PC tube
Adapter 12×0.5ml PP/PC tube
Adapter 12×0.2ml PP/PC tube
NO.2  Angle rotor 12×5ml 14000r/min 20378xg PP/PC tube
Adapter 12×1.5ml PP/PC tube
NO.3  Angle rotor 12×10ml 15000r/min 23120xg PP/PC tube
Adapter 12×5ml PP/PC tube
Adapter 12×1.5ml PP/PC tube
NO.4  Angle rotor 24×1.5/2.2ml 16000r/min 22896xg PP/PC tube
Adapter 24×0.5ml PP/PC tube
Adapter 24×0.2ml PP/PC tube
N0.5 Angle rotor 48×1.5/2.2ml 14000r/min 20378xg PP/PC tube
Adapter 48×0.5ml PP/PC tube
Adapter 48×0.2ml PP/PC tube
NO.6  Angle rotor 12×8×0.2ml 14000r/min 23120xg PCR 8-tube strips
NO.7  Angle rotor 10×15ml 13000r/min 20595xg PP/PC tube
Adapter 10×10ml PP/PC tube
Adapter 10×5ml PP/PC tube
Adapter 10×1.5ml PP/PC tube
NO.8  Angle rotor 6×50ml 13000r/min 17005xg PP/PC tube
Adapter 6×15ml PP/PC tube
Adapter 6×10ml PP/PC tube
Adapter 6×1.5ml PP/PC tube
NO.9  Angle rotor 4×100ml 11000r/min 13280xg PP/PC tube
Adapter 4×50ml PP/PC tube
Adapter 4×15ml PP/PC tube
Adapter 4×10ml PP/PC tube
Adapter 4×5ml PP/PC tube
Adapter 4×1.5ml PP/PC tube




This high-speed refrigerated centrifuge offers precise, powerful, and temperature-controlled centrifugation, making it an essential tool for labs dealing with diverse sample types and high-throughput tasks.





WHY CHOOSE US



  • Factory-direct sales at competitive prices.
  • Premium quality assured with CE & ISO certification.
  • Robust OEM & ODM customization capabilities.
  • Guaranteed production and on-time delivery.
  • Comprehensive after-sales service with complimentary product accessories.
  • Backed by 15 years of expertise in R&D and production of medical centrifuge machines.



CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 4

Our Factory Introduction



We boast a standardized production workshop operated by a dedicated team committed to upholding seriousness and responsibility in every product manufactured. Our R&D division comprises versatile professionals including design engineers, technology specialists, qualified experts, and process control managers. With a stringent adherence to our quality process control system, our qualified specialists rigorously oversee the entire production process, encompassing product design, research and development, testing, production, quality inspection, and packaging.

CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 6



Packaging & Shipping



Our product packaging has a long-standing track record of reliability. Typically, we utilize plywood boxes or cartons with trays, chosen based on the weight and size of the goods. However, we're flexible and open to accommodating your preferred packaging option.

CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 8



After-Sale WARRANTY



CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 10
