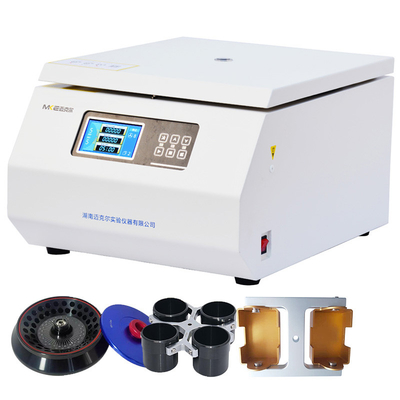

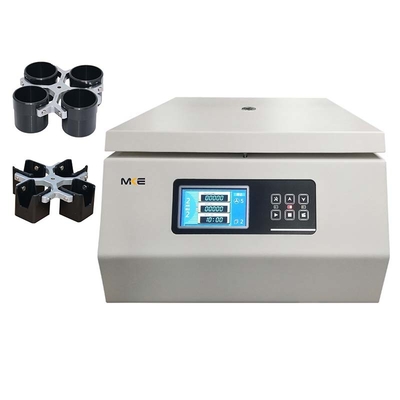

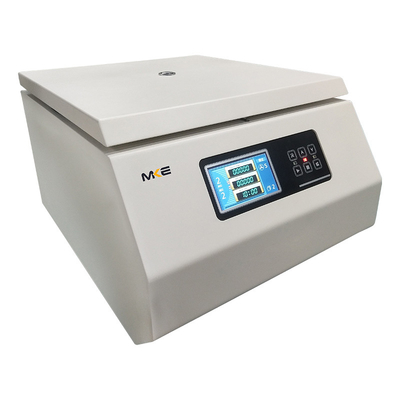

Compact yet versatile, the VL-200B Large Capacity High-Speed Centrifuge is designed to meet the needs of various laboratory tasks. It supports a broad range of tube capacities—0.2 ml to 100 ml with fixed-angle rotors and 1.5 ml to 750 ml with swing-out rotors. This flexibility makes it suitable for handling microtiter plates, well plates, and vacuum blood collection tubes, providing reliable performance across multiple applications.

Laboratory Use Max 3L Large Capacity Centrifuge 20000 rpm with Swing Rotor and Angle Rotor 0

Key Features

Space-Efficient: A compact design that blends power and functionality, fitting seamlessly into any lab environment.
Precise Performance: Microprocessor-controlled with a frequency conversion A.C. motor for accurate results.
Quiet Operation: Maintains noise levels below 58 dB, ensuring a peaceful lab atmosphere.
Stability and Control: Features a three-level damping system with 10 adjustable acceleration and braking rates to optimize centrifugation results.
High-Speed Capability: Operates at up to 20,000 rpm for high-performance needs.

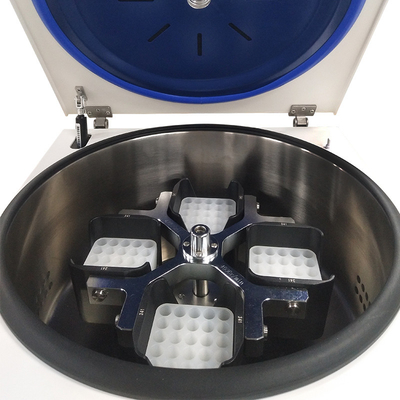

Flexible Capacity: Supports a range of rotors, including 6x100 ml fixed-angle and 4x750 ml swing-out options.
Convenience: Includes an observation window for straightforward speed calibration and monitoring.
Program Memory: Stores up to 30 user-defined procedures and keeps settings intact after power interruptions.
Safety Assured: Comprehensive safety features such as over-speed protection, over-temperature alerts, and an electronic safety door lock.
Easy Upkeep: Simplifies maintenance with quick rotor swaps, automatic lid-locking, and error codes for diagnostics.
Intuitive Controls: LCD touch screen offers a simple and clear interface for setting and monitoring parameters.

Tech Specification

Speed range(rpm)	0-21000rpm adjustable	Speed accuracy	±10rpm
Max Capacity(ml)	4*750ml	RCF range (xg)	0-31554xg
Display	LCD	Time range	0-99minutes 59 s adjustable
Noise Level(dBA)	≦58dB(A)	Acceleration /Deceleration rates	1-- 10
Dimension(mm)	560x440x360mm	Motor	Frequency Converter motor
Net weight(without rotor)	50KGS	Power supply	AC220V,50HZ,10A,750W

Matched Rotors

No.	Rotor	Capacity	Max. speed	Max.RCF	Note
NO.1	Angle rotor	12×1.5/2.2ml	21000r/min	31061xg	PP/PC tube
NO.1	Adapter	12×0.5/0.2ml	21000r/min	31061xg	PP/PC tube
NO.2	Angle rotor	12×5ml	21000r/min	31554xg	PP/PC tube
	Adapter	12×1.5ml			PP/PC tube
	Adapter	12×0.5/0.2ml			PP/PC tube
NO.3	Angle rotor	24×1.5/2.2ml	16000r/min	23800xg	PP/PC tube
NO.3	Adapter	24×0.5/0.2ml	16000r/min	23800xg	PP/PC tube
NO.4	Angle rotor	10×15ml	16000r/min	31197xg	PP/PC tube
	Adapter	10×10ml			PP/PC tube
	Adapter	10×5ml			PP/PC tube
	Adapter	10×1.5/0.5/0.2ml			PP/PC tube
NO.5	Angle rotor	48×1.5/2.2ml	15000r/min	23394xg	PP/PC tube
NO.5	Adapter	48×0.5/0.2ml	15000r/min	23394xg	PP/PC tube
NO.6	Angle rotor	12×10ml	15000r/min	24130xg	PP/PC tube
	Adapter	12×5ml			PP/PC tube
	Adapter	12×1.5/2.2ml			PP/PC tube
	Adapter	12×0.5/0.2ml			PP/PC tube
NO.7	Angle rotor	6×50ml	15000r/min	22640xg	PP/PC tube
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×3×1.5/0.5/0.2ml			PP/PC tube
NO.8	Angle rotor	6×100ml	13000r/min	20406xg	PP/PC tube
	Adapter	6×50ml			PP/PC tube
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×5/1.5ml			PP/PC tube
NO.9	Angle rotor	8×50ml	13000r/min	20122xg	PP/PC tube
	Adapter	8×15ml			PP/PC tube
	Adapter	8×10ml			PP/PC tube
	Adapter	8×3×1.5/0.5/0.2ml			PP/PC tube
NO.10	Swing bucket	4×250ml	4000r/min	3130xg	Round cup
	Adapter	4×9×5/2ml			Vacuum blood collection tube
	Adapter	4×5×15/10ml			PP/PC tube
	Adapter	4×1×50ml			PP/PC tube
	Adapter	4×1×100ml			PP/PC tube
	Adapter	4×9×1.5ml			PP/PC tube
NO.11	Swing bucket	4×400ml	4000r/min	3130xg	Square cup
	Adapter	4×16×5/2ml			Vacuum blood collection tube
	Adapter	4×9×15/10ml			PP/PC tube
	Adapter	4×4×50ml			PP/PC tube
	Adapter	4×1×100ml			PP/PC tube
	Adapter	4×15×1.5ml			PP/PC tube
NO.12	Swing bucket	4×500ml	4000r/min	3309xg	Round cup
	Adapter	4×17×5/2ml			Vacuum blood collection tube
	Adapter	4×8×15/10ml			PP/PC tube
	Adapter	4×3×50ml			PP/PC tube
	Adapter	4×1×100ml			PP/PC tube
NO.13	Swing bucket	4×600ml	4000r/min	3309xg	Square cup
	Adapter	4×25×5/2ml			Vacuum blood collection tube
	Adapter	4×12×15/10ml			PP/PC tube
	Adapter	4×5×50ml			PP/PC tube
	Adapter	4×4×100ml			PP/PC tube
NO.14	Swing bucket	4×750ml	4000r/min	3578xg	Round cup
	Adapter	4×26×5/2ml			Vacuum blood collection tube
	Adapter	4×13×15/10ml			PP/PC tube
	Adapter	4×5×50ml			PP/PC tube
	Adapter	4×3×100ml			PP/PC tube
NO.15	Microplate rotor	2×2×96 well	4200r/min	3057xg	Square cup
NO.15	Adapter	2×32×1.5ml	4200r/min	3057xg	PP/PC tube

WHY CHOOSE US

Factory-direct sales at competitive prices.
Premium quality assured with CE & ISO certification.
Robust OEM & ODM customization capabilities.
Guaranteed production and on-time delivery.
Comprehensive after-sales service with complimentary product accessories.
Backed by 15 years of expertise in R&D and production of medical centrifuge machines.

CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 4

Our Factory Introduction

We boast a standardized production workshop operated by a dedicated team committed to upholding seriousness and responsibility in every product manufactured. Our R&D division comprises versatile professionals including design engineers, technology specialists, qualified experts, and process control managers. With a stringent adherence to our quality process control system, our qualified specialists rigorously oversee the entire production process, encompassing product design, research and development, testing, production, quality inspection, and packaging.

CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 6

Packaging & Shipping

Our product packaging has a long-standing track record of reliability. Typically, we utilize plywood boxes or cartons with trays, chosen based on the weight and size of the goods. However, we're flexible and open to accommodating your preferred packaging option.

CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 8

After-Sale WARRANTY

CFC Cooling System High Capacity Blood Bank Centrifuge ISO9001 10

Product Type:	Table Top 20000 Rpm 4*750ml High Speed Centrifuge	Max Rpm:	20000rpm
Rotor:	Angle Rotor, Swing Bucket, Plate Rotor	Time Range:	1-99min
Maximum Capacity:	4x750ml	Noise:	<58dB(A)
Voltage:	AC 110V/220±20V 50Hz 10A	Display:	LCD
Speed Accuracy:	±10rpm	Acceleration /Deceleration Rates:	1-10 Rates
