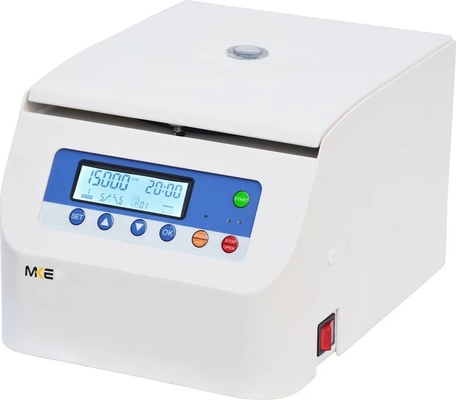

Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml

Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml
Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml

Large Image :  Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml

Product Details:
Place of Origin: China
Brand Name: Labtech
Certification: CE, ISO, IUV
Model Number: HK-16C

Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml

Description
Speed Accuracy: ±10r/min Motor: Brushless Motor
Power: AC110-240V/50Hz/60Hz 370W Application: Laboratory,chemistry Factory,hospital
Rotor Capacity: 0.2ml/0.5ml/1.5ml/2ml/5ml Warranty: 1 Year
Highlight:

12*5ml High Speed Centrifuge

,

16500r/min High Speed Centrifuge

,

Laboratory High Speed Centrifuge

The HK-16C Micro Centrifuge is equipped with a diverse selection of rotors, designed to meet a variety of laboratory needs. It supports PCR strips, filter tubes, and micro-liter tubes ranging from 2ml to 5ml, making it a versatile tool for applications in microbiological research, protein biochemistry, and clinical chemistry. With its ability to handle micro tubes from 1.5ml to 5ml, this centrifuge is ideal for tasks such as sample pelleting, sedimentation, preparation, and purification.


Laboratory High Speed Centrifuge 16500r/min Max Capacity 12*5ml 0


Tech Specification


Max. RPM / Fixed angle 16,500rpm/ 19,480 x g Speed accuracy ±10r/min
Max.Capacity,Fixed Angle 12 x 5ml Noise level (dB) ≦55dB(A)
Safety lid lock Yes ACC/DEC 10/10 steps
Max. acceleration time [s] 15 seconds Max. braking time [s] 15 seconds
Display LCD Program memory 10
Automatic rotor identification Yes Lid drop protection Yes
Motorized lid open & close Yes Imbalance cut-off Yes
Parameters on display window RPM (RCF), Time, ACC, DEC Power requirement 370 W
Time control

1-99minutes

59s adjustable

Power supply

AC220V,50HZ,10A;

110V optional

Dimension (W x D x H, mm) 340*260*220mm Weight without rotor (kg) 15 kg

Key Features:

  • Advanced Microprocessor Control: The HK-16C uses microprocessor-based control paired with a frequency conversion A.C. motor drive for precision and efficiency.
  • Clear LED Display: Displays real-time operational data including speed, time, RCF, rotor type, memory programs, acceleration/deceleration rates, and error codes for easy monitoring.
  • Optimal Performance: Offers 10 acceleration and 10 braking options, minimizing the risk of secondary sedimentation and improving centrifugation results. Achieves maximum speed of 16,500 rpm within 15 seconds, with equally fast braking time.

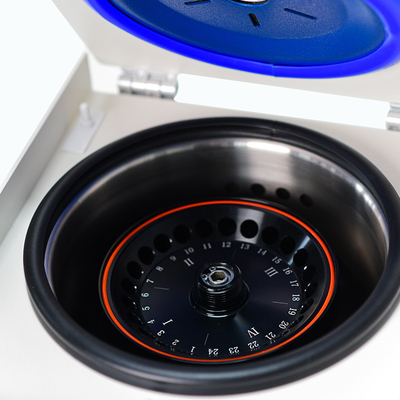

  • Automatic Rotor Locking: Features automatic cap locking during rotor operation to ensure safety and stability.
  • Easily Replaceable Rotor: Simplifies the process of switching rotors to accommodate different applications.
  • Low Noise Operation: Operates at a noise level of under 55 dBA even at full speed, ensuring a quiet laboratory environment (patent no. ZL201721835868.9).
  • Safety Features: Includes automatic troubleshooting with error code display, along with a secure electrical lid interlock that prevents the door from opening while the rotor is running. The machine will not operate if the lid is open, ensuring user safety.

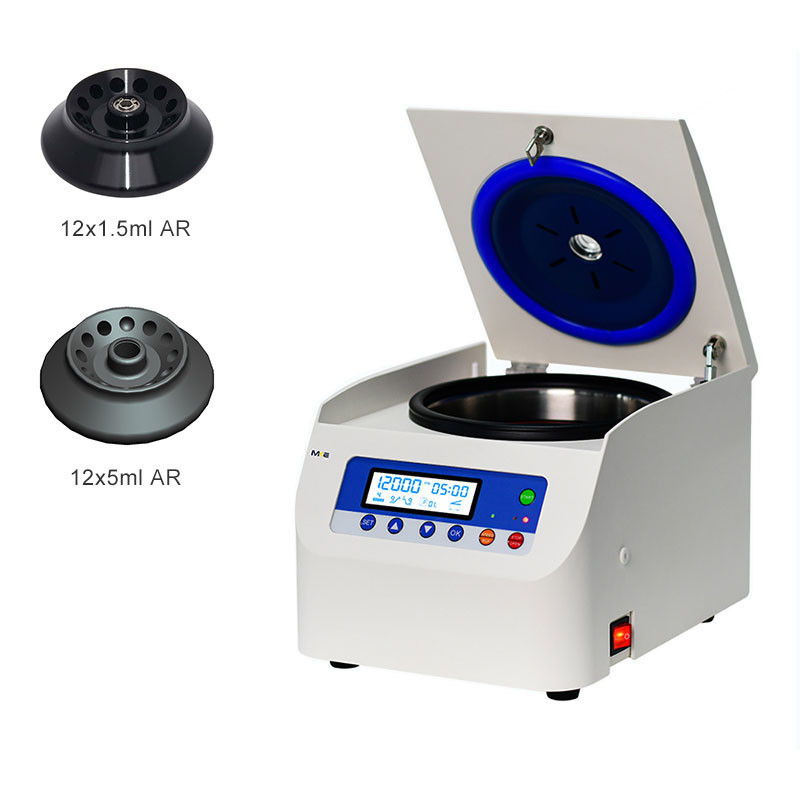

Matched Rotors

No. Rotor Max.Capacity Max. speed Max. RCF Note

NO.1


Angle rotor 12×1.5/2.2ml 16500r/min 19175xg EP/PP tube
Adapter 12×0.5/0.2ml EP/PP tube

NO.2


Angle rotor 12×5ml 16500r/min 19480xg EP/PP tube
Adapter 12×1.5ml EP/PP tube

NO.3


Angle rotor 8×8×0.2ml 13500r/min 16480xg PCR 8 strip tubes

NO.4


Angle rotor 24×1.5-2.2ml 14000r/min 17530xg EP/PP tube
Adapter 24×0.5/0.2ml EP/PP tube



The HK-16C Micro Centrifuge is a reliable and versatile addition to any lab, delivering high-speed performance and comprehensive safety features for a range of critical laboratory tasks.
