Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes

Certification
China Changsha Labtech Group Limited. certification
China Changsha Labtech Group Limited. certification
I'm Online Chat Now

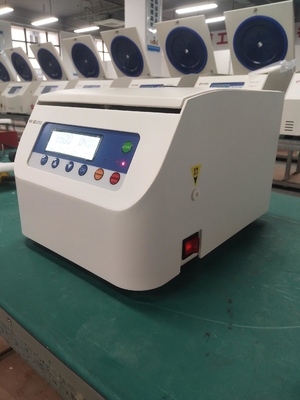

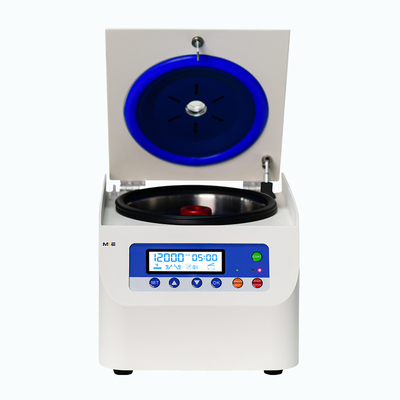

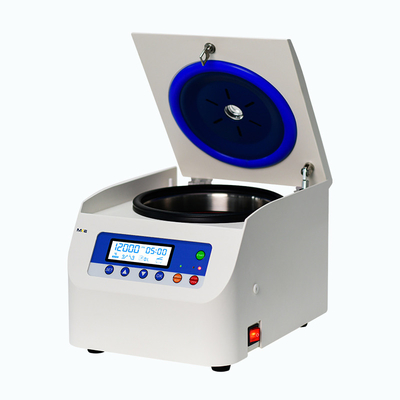

Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes

Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes
Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes

Large Image :  Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes

Product Details:
Place of Origin: China
Brand Name: Labtech
Certification: CE, ISO
Model Number: HK-16C

Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes

Description
Type: High Speed Mini Centrifuge Max Rpm: 16500rpm
Max Capacity: 12x 15ml Acceleration/Deceleration: 10 Levels
Noise Level: <55dB(A) Rotor Material: Aluminum Alloy
Max RCF: 19480 Xg Power Supply: AC 220V/110V, 50Hz/60Hz
Highlight:

16500 rpm High Speed Mini Centrifuge

,

Small Size High Speed Mini Centrifuge

The Labtech HK-16C micro centrifuge offers a wide selection of rotors tailored to different requirements, accommodating PCR strips, filter tubes, as well as 2ml and 5ml micro-liter tubes. Its outstanding performance and versatile rotor choices make it ideal for various applications, including microbiological research, protein biochemistry, and clinical chemistry. Utilizing micro tubes ranging from 1.5ml to 5ml, this centrifuge serves diverse purposes like sample pelleting, sedimentation, preparation, and purification.



Small Size High Speed Mini Centrifuge Max 16500 rpm 24 Placer Tubes 0

Technical Specifications:

Max. RPM / Fixed angle 16,500rpm/ 19,480 x g Speed accuracy ±10r/min
Max.Capacity,Fixed Angle 12 x 5ml Noise level (dB) ≦55dB(A)
Safety lid lock Yes ACC/DEC 10/10 steps
Max. acceleration time [s] 15 seconds Max. braking time [s] 15 seconds
Display LCD Program memory 10
Automatic rotor identification Yes Lid drop protection Yes
Motorized lid open & close Yes Imbalance cut-off Yes
Parameters on display window RPM (RCF), Time, ACC, DEC Power requirement 370 W
Time control

1-99minutes

59s adjustable

Power supply

AC220V,50HZ,10A;

110V optional

Dimension (W x D x H, mm) 340*260*220mm Weight without rotor (kg) 15 kg



Diverse Choice of Rotors:

No. Rotor Max.Capacity Max. speed Max. RCF Note

NO.1



Angle rotor 12×1.5/2.2ml 16500r/min 19175xg EP/PP tube
Adapter 12×0.5/0.2ml EP/PP tube

NO.2



Angle rotor 12×5ml 16500r/min 19480xg EP/PP tube
Adapter 12×1.5ml EP/PP tube

NO.3



Angle rotor 8×8×0.2ml 13500r/min 16480xg PCR 8 strip tubes

NO.4



Angle rotor 24×1.5-2.2ml 14000r/min 17530xg EP/PP tube
Adapter 24×0.5/0.2ml EP/PP tube













Features of High Speed Mini Centrifuge:

· Benchtop Microcentrifuges High Speed Clinical Centrifuge HK-16C use Microprocessor control with frequency conversion A.C. motor drive.

· Large LED display clearly shows the operation status, parameters such as speed, timer, RCF, rotor, program (memory), acceleration and deceleration information and error code information.

· Benchtop Microcentrifuges High Speed Clinical Centrifuge HK-16C Provides 10 acceleration rates and 10 braking ramps to effectively avoid secondary sedimentation and better centrifugation results. Fast acceleration rate reaches 165,000rpm in 15 seconds, and so does the braking ramp.

· Benchtop Microcentrifuges High Speed Clinical Centrifuge HK-16C offers Automatic cap locking and fixing during rotor operation

· Rotor can be easily replaced

· Benchtop Microcentrifuges High Speed Clinical Centrifuge HK-16C's Noise level below 55 dBA at maximum rotational speed.

· Automatic troubleshooting with error codes and alarms displayed on screen.

· Safe electrical lid interlock, door cannot be opened while rotor is running, machine will not run with lid open and error codes appear.
